NSHTOU，NSHTOU-J，NSHTOEU-J卷筒用抗拉耐磨電纜，(N)SHTOU-J船用抓斗電纜，NSHTOU卷筒電纜，NSHTOU 10KV 3*25+3*16/3

適用于中等和高等機械應力的卷筒電纜

Suitable for reel cables with medium and high mechanical stress

(N)SHTOU  0.6/1KV，NSHTOU，NSHTOU-J，NSHTOEU-J，NSHTOU 10KV 3*25+3*16/3

NSHTOU，NSHTOU-J，NSHTOEU-J抗拉耐磨卷筒專用電纜應用/Application：

本產品廣泛適用于升降機，電站龍門起吊系統，傳輸和傳送帶系統中，造船龍門起重機，升級系，卸船機，堆取料機，大型橋吊等工程機械的卷盤（卷筒）裝置；無論是收線，放線或是電纜可被收放，或是通過滾輪牽引，適用于干燥或潮濕的室內或戶外使用。

This product is widely used in elevators, power station gantry lifting systems, transmission and conveyor belt systems, shipbuilding gantry cranes, upgrade systems, ship unloaders, stackers and reclaimers, large bridge cranes and other construction machinery reel (reel) devices; The cable can be retracted, put out, or the cable can be retracted, or pulled by a roller, suitable for dry or humid indoor or outdoor use.

NSHTOU，NSHTOU-J，NSHTOEU-J抗拉耐磨卷筒專用電纜技術參數/Technical parameters :

額定電壓: U0/U  0.6/1KV，6/10KV

絕緣電阻：≥10 GOhm x cm
測試電壓 : 3000V
工作溫度: -25°C to +80°C
彎曲半徑: 7.5D（電纜直徑）

阻燃性：符合IEC60332-1-2標準

耐油性：EN 60811-2-1標準

Rated voltage: U0/U 0.6/1KV

Insulation resistance: ≥10 GOhm x cm

Test voltage: 3000V

Working temperature: -25°C to +80°C

Bending radius: 7.5D (cable diameter)

Flame retardancy: in line with IEC60332-1-2 standard

Oil resistance: EN 60811-2-1 standard

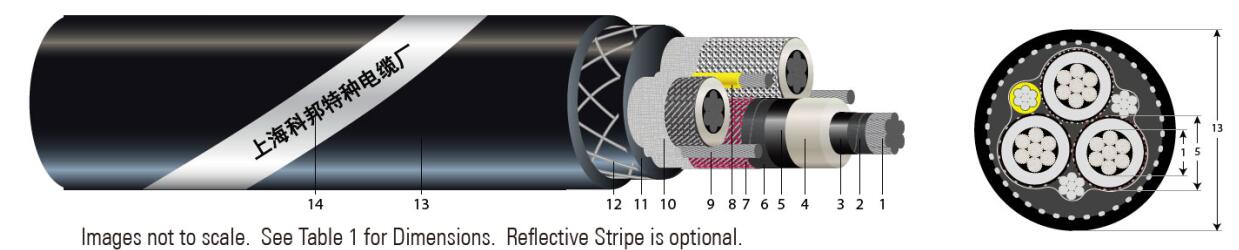

NSHTOU，NSHTOU-J，NSHTOEU-J，NSHTOU 10KV 3*25+3*16/3抗拉耐磨卷筒專用電纜結構/Cable structure :

導體：多股抗折彎柔性細銅絲絞合導體，符合CE 0812/IEC 60228第6類
絕緣：高機械性能絕緣3GI3型橡膠混合材物
加強層：護套內嵌凱夫拉絲聚酯纖維抗拉抗扭加強編織層

外護套：高分子耐候性5GM5型橡膠材物

Conductor: Multi-stranded flexible thin copper wire stranded conductor, in line with CE 0812/IEC 60228 category 6

Insulation: High mechanical performance insulation 3GI3 rubber compound material

Reinforcement: Kevlar polyester fiber tensile and torsion reinforced braid embedded in the sheath

Outer sheath: high polymer weather resistance 5GM5 rubber material

NSHTOU，NSHTOU-J，NSHTOEU-J抗拉耐磨卷筒專用電纜特性/Cable characteristics :

適用于戶外使用

增強型外護套設計，抗機械應力優異
中央防撕裂承載加強芯，適用于高機械應力場合
耐寒，抗拉，耐磨，耐拖拽，耐油，耐卷繞，抗UV
中央承載加強芯可吸收張力，因此允許自由懸掛電纜在長距離的情況下收放線以及偏斜，電纜可被收放，或通過滾輪牽引，護套中內嵌了加強編織層，防止電纜發生不必要的扭曲，并形成所謂的螺旋形效應。

Suitable for outdoor use

Enhanced outer sheath design, excellent resistance to mechanical stress

Central tear-proof load-bearing reinforced core, suitable for high mechanical stress occasions

Cold resistance, tensile resistance, abrasion resistance, drag resistance, oil resistance, winding resistance, UV resistance

The central load-bearing reinforced core can absorb tension, so it allows the free suspension of the cable to be retracted and deviated in the case of a long distance. The cable can be retracted or pulled by a roller. A reinforced braid is embedded in the sheath to prevent the cable from happening. Unnecessary twisting and forming the so-called spiral effect.

注釋/Remark：

1/更多規格請聯系我們

2/X-不含黃綠接地保護芯線，G-含黃綠接地保護芯線

3/標準包裝100m、200m、500m、1000m

1/Please contact us for more specifications

2/X- does not contain yellow-green grounding protection core wire, G- contains yellow-green grounding protection core wire

3/ Standard packaging 100m, 200m, 500m, 1000m
